Electric Cutlery/Columbia Razor
Filed Tuesday, 12th February 1889
Published Tuesday, 4th June 1889
Inventor Friedrich Ascheuer
Owner Electric Cutlery Company
Safety razors with one or more blades arranged transversely to the handle involving blades with only one cutting edge
Performing Operations; Transporting
Hand Cutting Tools; Cutting; Severing
Hand-Held Cutting Tools Not Otherwise Provided For
Razors of the open or knife type; Safety razors or other shaving implements of the planing type; Hair-trimming devices involving a razor-blade; Equipment therefor
Razors of the open or knife type; Safety razors or other shaving implements of the planing type; Hair-trimming devices involving a razor-blade; Equipment therefor involving changeable blades
Safety razors with one or more blades arranged transversely to the handle
For a full resolution version of the images click here
A PDF version of the original patent can be found here.
Parts not referenced in the text: None
Parts not referenced in the images: None
No. 404,763.Patented June 4, 1889.
United States Patent Office.
Friedrich Ascheuer, of New York, N. Y., assignor to The Electric Cutlery Company, of same place.
SPECIFICATION forming part of Letters Patent No. 404,763, dated June 4, 1889.
Application filed February 12, 1889. Serial No. 299,577. (Model.)
To all whom it may concern:
Be it known that I, Friedrich Ascheuer, of New York city, New York, have invented an Improved Razor, of which the following is a specification.
This invention relates to a razor of the kind that is provided with a guard to prevent accidental cutting. The razor has a split handle embraced by a ring, to which the guard is secured. By slipping the ring upward the razor-blade is secured to the handle.
The invention consists in the various features of improvement more fully pointed out in the claims.

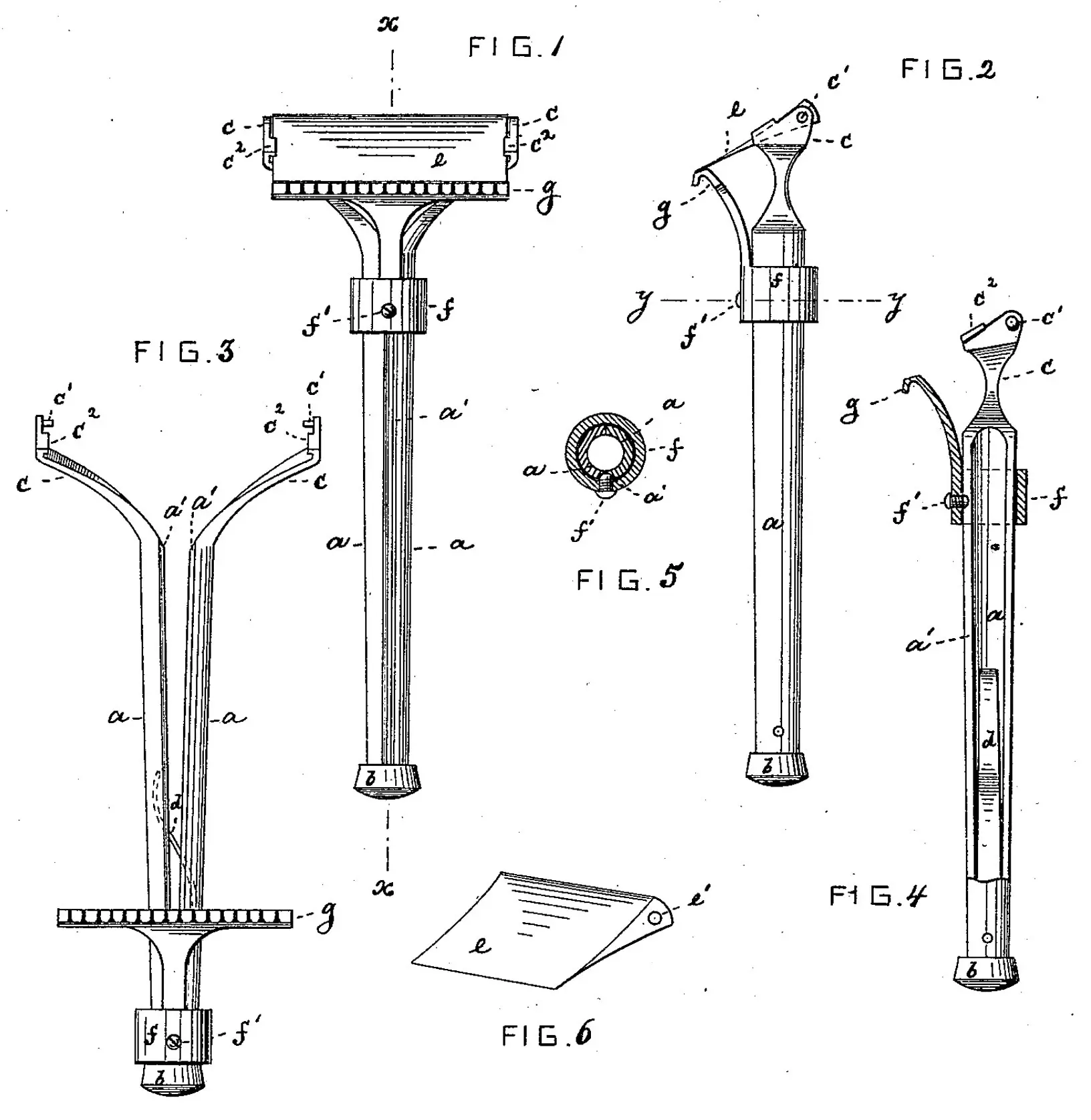

In the accompanying drawings, Figure 1 is a front view of my improved razor. Fig. 2 is a side view thereof; Fig. 3, a front view with the razor-blade removed; Fig. 4, a longitudinal section, partly in side view, on line x x, Fig. 1; Fig. 5, a cross-section on line y y, Fig. 2; and Fig. 6, a perspective view of the blade.
The letters a a represent the two sections of a divided tubular handle, connected at their lower ends by a cap b, and terminating at their upper ends in the laterally-projecting arms c. Each arm c has an inwardly-extending pin c′ and stop c2. Within the handle there is a spring d, that tends to force the free ends of the handle-sections apart. The blade e has a small hole e′ in each end adapted to engage pin c′. Around the handle there is slipped a ring f, to which the guard g is secured. A small pin f′ on the ring enters a longitudinal groove a′ in sections a a and guides the guard upward in a position directly beneath the blade.
In use the ring is first pushed down, as in Fig. 3, so that the arms c spread apart. The blade e is introduced between the arms, and then the ring is slipped upward. This causes the sections a to close against one another. The pins c′ on arms c will engage the holes e′ of blade e. Thus the blade is held securely in place, and at the same time the guard g is brought into the proper position beneath the cutting-edge of the blade. The stops c2 rest upon the face of the blade and prevent it from tilting.
What I claim is—
1. The combination of a split handle having arms c with a surrounding ring f and guard g secured thereto, and with a blade adapted to be engaged by arms c, substantially as specified.
2. The combination of a split handle having arms c and pins c′ with spring d, ring f, guard g, and blade e, having holes e′, substantially as specified.
3. The combination of split handle having groove a′ and arms c with spring d, blade e, ring f, and guard g, the ring f having pin f′, substantially as specified.
F. v. Briesen,
Henry E. Roeder.
