Curley Razor Guard

Patent US645791

Invention Razor-Guard

Filed Friday, 22nd December 1899

Published Tuesday, 20th March 1900

Inventor Terence F. Curley

Language English

CPC Classification:
  • H02J1/12
    Parallel operation of dc generators with converters, e.g. with mercury-arc rectifier
  • H
  • H02
    Generation; Conversion Or Distribution Of Electric Power
  • H02J
    Circuit Arrangements Or Systems For Supplying Or Distributing Electric Power; Systems For Storing Electric Energy
  • H02J1/00
    Circuit arrangements for dc mains or dc distribution networks
  • H02J1/10
    Parallel operation of dc sources

For a full resolution version of the images click here

A PDF version of the original patent can be found here.

No. 645,791.Patented Mar. 20, 1900.
United States Patent Office.

Terence F. Curley, of New York, N. Y. Razor-Guard.
SPECIFICATION forming part of Letters Patent No. 645,791, dated March 20, 1900. Application filed December 22, 1899. Serial No. 741,283. (No model.)

To all whom it may concern:

Be it known that I, Terence F. Curley, a citizen of the United States, and a resident of the city of New York, borough of Brooklyn, in the county of Kings and State of New York, have invented a new and Improved Razor-Guard, of which the following is a full, clear, and exact description.

The object of the invention is to provide a new and improved razor-guard more especially designed for use on ordinary razors and arranged to allow the user to conveniently, quickly, and accurately adjust the guard-bar relatively to the cutting edge of the razor-blade to permit proper shaving and with the utmost safety.

The invention consists of novel features and parts and combinations of the same, as will be fully described hereinafter and then pointed out in the claims.

A practical embodiment of my invention is represented in the accompanying drawings, forming a part of this specification, in which similar characters of reference indicate corresponding parts in all the views.

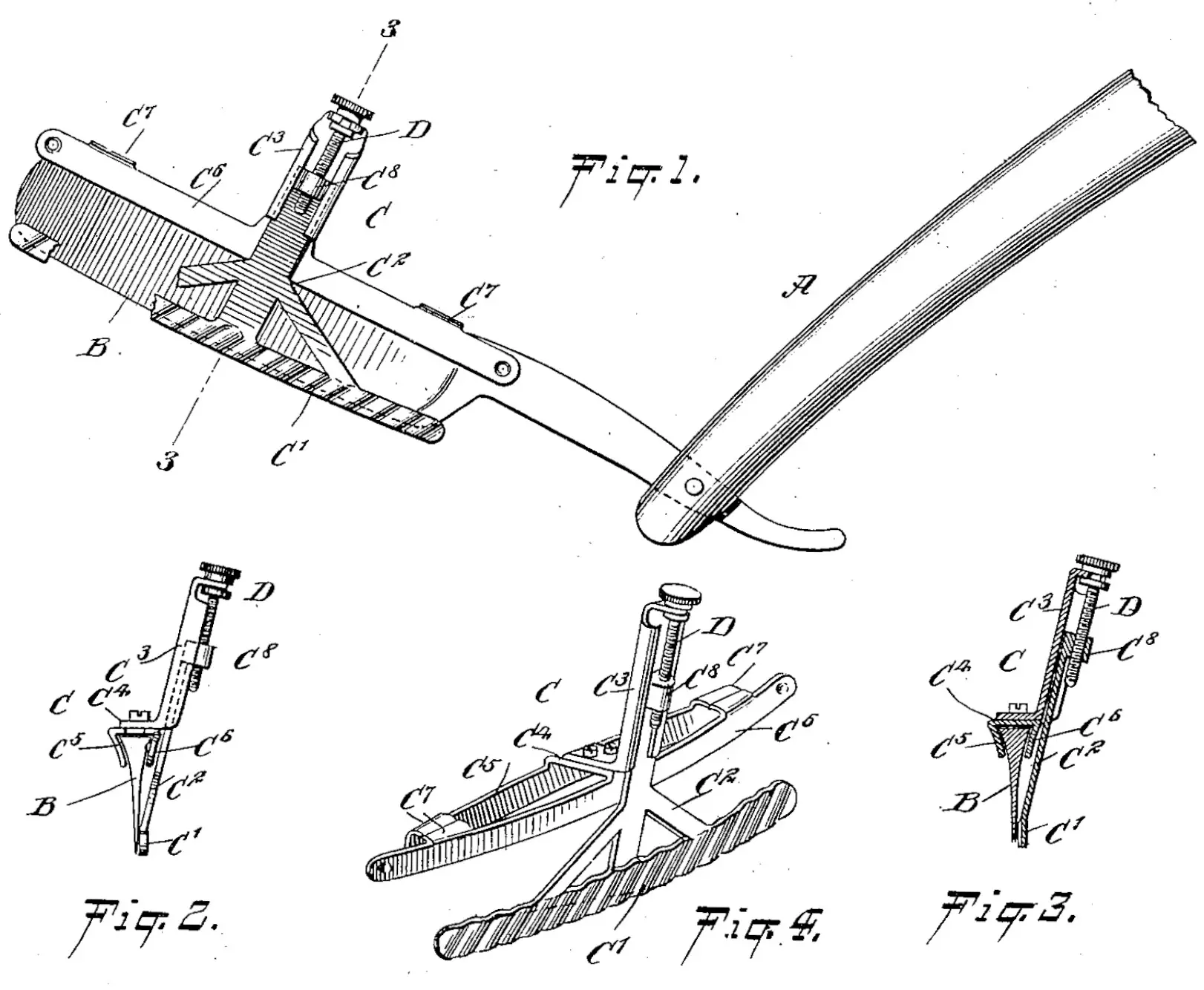

Figure 1 is a side elevation of the improvement as applied. Fig. 2 is an end elevation of the same. Fig. 3 is a transverse section of the same on the line 3 3 in Fig. 1, and Fig. 4 is a perspective view of the guard detached.

The razor on which the improvement is applied is provided with the usual handle A and the blade B, near the cutting edge of which extends the guard-bar C′ of a razor-guard C, removably held on the blade and adapted to be put on either side thereof. The guard-bar C′ is provided at its middle with an extension C2, mounted to slide in a guideway C3, having a footpiece bolted, riveted, or otherwise secured to a cross-piece C4 for connecting the spring clamping-bars C5 C6 with each other, said spring clamping-bars being provided near their outer ends with transversely-extending lugs C7, which rest on the top of the razor-blade B and limit the downward movement of the bars C5 C6, to engage the sides or faces of the blade B, as is plainly indicated in the drawings. By the arrangement described the bars C5 C6, with the cross-piece C4 and the lugs C7, form a spring clamping-frame adapted to be slipped upon the back of the blade B, the guideway C3 extending above either of the two faces of the blade B, In the top of the guideway C3 is mounted to turn a screw-rod D, screwing in a nut C8, formed on the upper end of the extension C2, so that when the head of the screw-rod D is turned by the operator the extension C2, and with it the bar C′, is mounted to move over the face of the blade B to bring the outer edge of said guard-bar in proper relation to the cutting edge of the blade B to insure proper shaving and with the utmost safety.

The device is very simple and durable in construction, and, as previously mentioned, the frame, and with it the guard-bar, can be readily placed in position with the blade B or removed therefrom whenever it is desired to clean the blade or to sharpen the same by any of the well-known means.

Having thus fully described my invention, I claim as new and desire to secure by Letters Patent—

1. A razor-guard, comprising a spring clamping-frame for removable connection with the razor-blade, a guard-bar mounted to slide on the frame, and a screw mounted to turn in said frame and screw in said guard-bar, to move the latter across the face of the blade, substantially as shown and described.

2. A razor-guard, comprising a guard-bar having an angular extension with a nut, a frame for removable connection with the razor-blade, a guideway on said frame for the extension to slide in, and a screw-rod mounted to turn in said guideway and screw in said nut, substantially as shown and described.

3. A razor-guard, comprising a spring clamping-frame having two longitudinally-extending spring-bars connected with each other at their middle by a cross-piece, and provided at their ends with lugs for resting on the back of the razor-blade, a guideway secured to said cross-piece, a guide-bar having an extension mounted to slide in said guideway, and a screw-rod mounted to turn in said guideway and screw in the nut on said extension, as set forth.

In testimony whereof I have signed my name to this specification in the presence of two subscribing witnesses.

Terence F. Curley.


Theo. G. Hoster,

Everard Bolton Marshall.
