Nail Clipper

Patent US782654

Invention Nail-Clipper

Filed Monday, 19th September 1904

Published Tuesday, 14th February 1905

Inventor Hubert Chauncy Hart

Owner H.C Cook Company

Language English

CPC Classification:
A45D29/02
  • A45D29/02
    Nail clippers or cutters
  • A
    Human Necessities
  • A45
    Hand Or Travelling Articles
  • A45D
    Hairdressing Or Shaving Equipment; Manicuring Or Other Cosmetic Treatment
  • A45D29/00
    Manicuring or pedicuring implements

For a full resolution version of the images click here

A PDF version of the original patent can be found here.

No. 782,654.Patented Feb. 14, 1905.
United States Patent Office.

Hubert Chauncy Hart, of Unionville, Connecticut, assignor to the H. C. Cook Company, of Ansonia, Connecticut. Nail-Clipper.
SPECIFICATION forming part of Letters Patent No. 782,654, dated February 14, 1905. Application filed September 19, 1904. Serial No. 225,069. (No model.)

To all whom it may concern:

Be it known that I, Hubert C. Hart, a citizen of the United States, residing at Unionville, in the county of Hartford and State of Connecticut, have invented new and useful Improvements in Nail-Clippers, of which the following is a specification.

This invention relates to improvements in finger-nail clippers.

The object of the invention is to provide a nail-clipper having concealed means for locking the clipper-jaws to prevent the opening of the latter when not in use in a person's pocket.

Many other objects and advantages will be hereinafter referred to, and pointed out particularly in the claims.

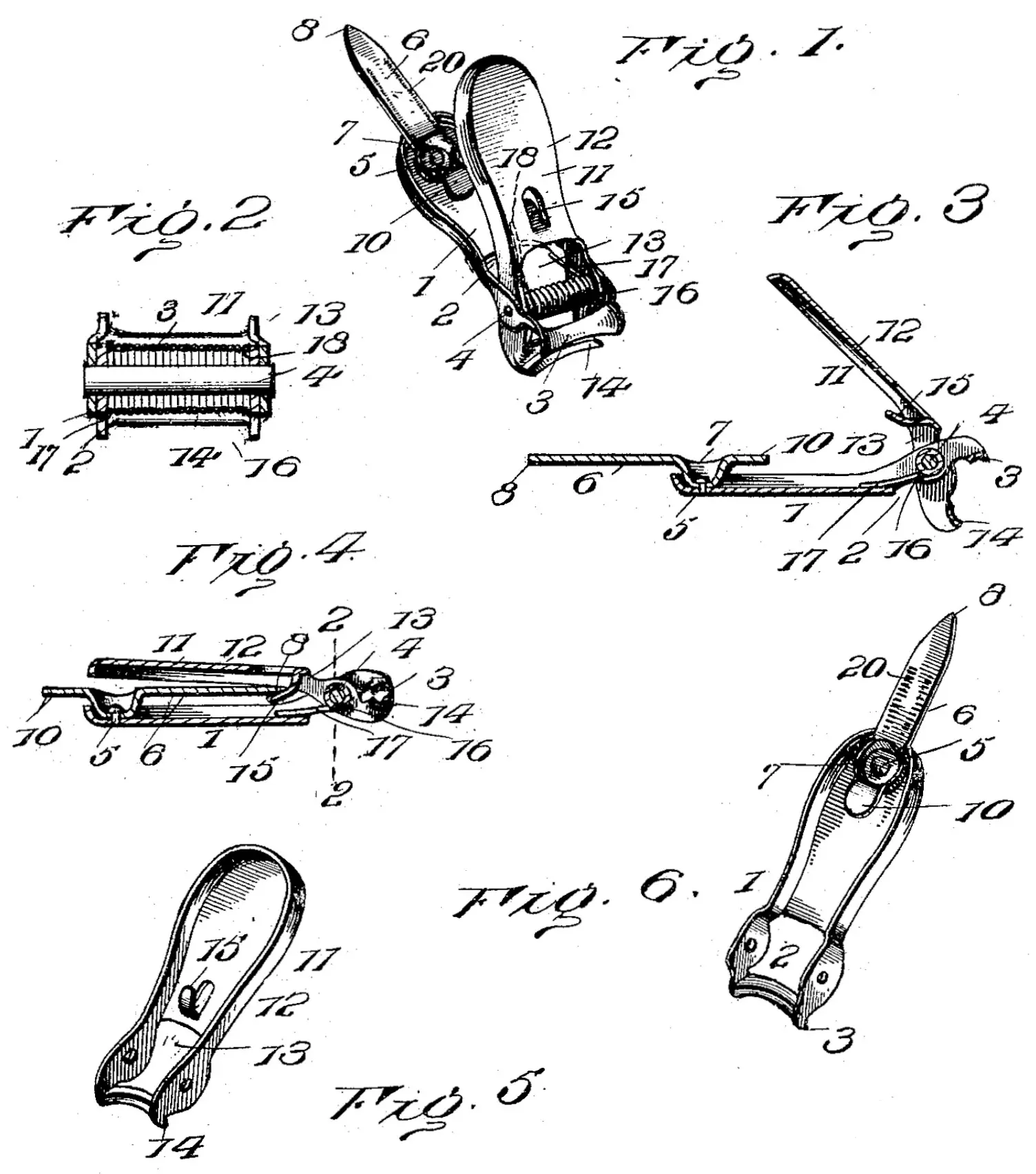

In the drawings, Figure 1 is a perspective view of my improved nail-clipper. Fig. 2 is a transverse section on the line 2 2, Fig. 4. Fig. 3 is a vertical section showing the clippers open. Fig. 4 is a similar view showing the clippers closed. Fig. 5 is a detail perspective view of one of the clipper members. Fig. 6 is a similar view showing the complementary member.

The numeral 1 represents a clipper member provided with an opening 2 near its front end. The end next the opening 2 is bent and sharpened to form a curved cutting edge 3, and the side walls of the opening connecting the edge 3 are perforated to receive a pintle 4, At the opposite end of the member 1 is pivotally mounted by a rivet or the like 5 a finger-nail cleaner 6, which also forms a locking element. The cleaner 6 has a depression at 7, in which is seated the pivot 5, and at the inner end the cleaner is pointed, as at 8, while its opposite end projects beyond the rivet and outside the end of the member 1 to form a finger-piece 10. A second clipper member is indicated at 11, and it comprises a handle 12, provided with an opening 13, and at its front end the metal is bent and sharpened to form a curved cutting edge 14, corresponding in size and shape with the edge 3. The side arms of the clipper member 11 are perforated to receive the pintle 4, said side arms fitting in the opening 2 of the clipper member 1. In rear of the opening 13 a lug 15 is struck from the body of the metal and is in such position that when the two members are closed the pointed end of the cleaner 6 will engage it and prevent the members being opened. A spring 16 is coiled around the pintle 4, one end, 17, engaging the member 1 and the opposite end, 18, engaging the complementary member 11.

The parts assembled as set forth, the spring will normally hold the two clipper members apart, and upon squeezing them the cutting edges 3 and 14 are brought together and readily sever the finger-nail. If it be desired to lock the two clipper members together, they are closed and the cleaner 6 is turned on its pivot to bring the point into engagement with the lug and prevents the members being opened. To release the members, that the device may be operated, the finger end of the cleaner is turned and the pointed end engaged from the lug 15 and the spring throws the members open.

The finger-nail cleaner may have a series of serrations 20 to form a file for the finger-nails when desired.

What I claim as new is—

1. A finger-nail clipper comprising a pair of spring-actuated clipping members pivoted together, a lever pivoted on the inner side of one of the clipper members, and a lug struck from the complementary member and projecting on the inner side thereof, the pivoted lever engaging the lug to lock the two members together, substantially as described.

2. A finger-nail clipper comprising a pair of spring-actuated clipping members pivoted together, a pointed lever pivoted on the inside of one of the clipping members, a lug on the inside of the complementary clipper member, the pointed end of the lever engaging the lug to lock the clipper members together, substantially as described.

3. A finger-nail clipper comprising a pair of spring-actuated clipping members pivoted together, a lever pivoted on the inner side of one of the clipper members, and a flanged lug on the complementary member and projecting on the inner side thereof, the pivoted lever engaging the flange of the lug to lock the two members together, substantially as described.

In testimony whereof I affix my signature in presence of two subscribing witnesses.

Hubert C. Hart.

Witnesses:

Jno. Imirie,

Deniza J. Matthews.
